Steps for Implementing a More Robust Backend Development Architecture (Part 1)

You’ve arrived at the moment where your project is getting serious and you need to begin coding some serious backend. This guide will get you started.

Goal of Backend Restructure

Goal of the development project is to get the backend to look like this:

Backend architecture:
- Index.js
- App.js
- Routers:
  - Streams Router
  - Trades Router
  - User Router
  - Login Router
- Models
  - Trades Model
  - Streams Model
  - User Model
- Utils
  - Middleware
  - Logger
  - config.js
- Tests
  - setting up test environment

Laying the groundworks

Step 1: Take stock of current project dependencies and structure

Examine package.json to see what dependencies it currently have. Examine the project folder structure and files to check where is the backend mostly stored. For a simple express server, it is possible that all the routes, middleware, models, are stored in index.js.

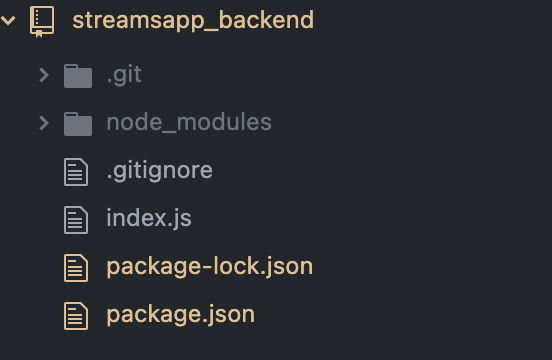

This is the state of my project before I decided to add robustness to it.

My index.js was simply:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
const express = require('express')
const app = express()
const cors = require('cors')
app.use(cors())

const trades = [
    ...
]

const streams = [
    ...
]

app.get('/', (request, response) => {
  response.send('<h1>Hello World!</h1>')
})

app.get('/api/streams', (request, response) => {
  response.json(streams)
})

app.get('/api/trades', (request, response) => {
  response.json(trades)
})

const PORT = 3001
app.listen(PORT, () => {
  console.log(`Server running on port ${PORT}`)
})

There are three get routes, and the data is stored in variables within the index.js file. There’s no ways of altering the data via post.

These are my dependencies in my package.json file:

1
2
3
4
5
6
7
"dependencies": {
  "cors": "^2.8.5",
  "express": "^4.17.1"
},
"devDependencies": {
  "nodemon": "^2.0.12"
}

As you can see, pretty bare bones. Time to beef it up!

Step 2: Install morgan for dev console logging

npm install morgan
var morgan = require('morgan') within index.js (for now)
app.use(morgan('tiny'))¹

(Optional) If you want to customize your morgan message, you could do it like so:

1
2
morgan.token('data', (req, res) => JSON.stringify(req.body))
app.use(morgan(':method :url :response-time :data'))

This would display the response data: e.g. POST /api/persons 6.638 {"name":"Ar22to Hellas","number":"040-123456"}

Step 3: Set up Eslint.

npm install eslint --save-dev

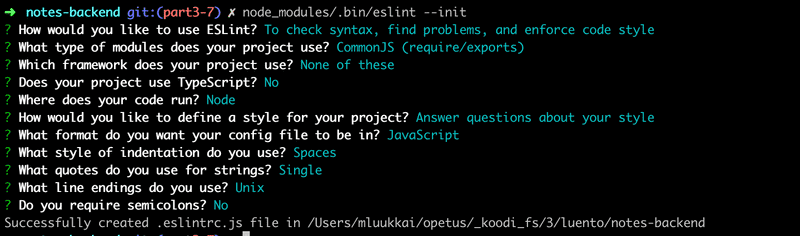

Initialize eslint with node_modules/.bin/eslint --init Follow this as reference:
Enable command npm lint

1
2
3
4
5
6
7
{
  "scripts": {
    "start": "node index.js",
    "dev": "nodemon index.js",
    "lint": "eslint ."
  },
}

Restructuring the project

There are no right ways to move forward with the next step. For this case, I’ve decided to begin with constructing the models for my app.

Step 4: Creating models

Create a new folder models
Create your first model. This case, trade.js.
Coding the model
- a mongoose model basically consists of:
  - a schema where you define the fields and data types new mongoose.Schema({})
  - any validator you want to perform on it (e.g. userSchema.plugin(uniqueValidator))
  - display transformation userSchema.set('toJSON')
  - model creation mongoose.model('User', userSchema)
  - exporting

Example of User model:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
const mongoose = require('mongoose')
const uniqueValidator = require('mongoose-unique-validator')

const userSchema = new mongoose.Schema({
  username: {
    type: String,
    unique: true
  },
  name: String,
  passwordHash: String,
  notes: [
    {
      type: mongoose.Schema.Types.ObjectId,
      ref: 'Note'
    }
  ],
})

userSchema.plugin(uniqueValidator)

userSchema.set('toJSON', {
  transform: (document, returnedObject) => {
    returnedObject.id = returnedObject._id.toString()
    delete returnedObject._id
    delete returnedObject.__v
    // the passwordHash should not be revealed
    delete returnedObject.passwordHash
  }
})


const User = mongoose.model('User', userSchema)

module.exports = User

Step 5: Create logger.js file in utils

/utils/logger.js

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
const info = (...params) => {
    if (process.env.NODE_ENV !== 'test') {
        console.log(...params)
    }

}

const error = (...params) => {
    if (process.env.NODE_ENV !== 'test') {
        console.error(...params)
    }
}

module.exports = {
    info, error
}

Step 6: Creating `app.js`

Distribute the responsibility between index.js and app.js. index.js should import app.js, and has a simple job of opening a port to listen.

Index.js

1
2
3
4
5
6
7
8
const app = require('./app')
const cors = require('cors')
app.use(cors())

const PORT = 3003
app.listen(PORT, () => {
    console.log(`Server running on port ${PORT}`)
})

App.js contains the main app; i.e. database connection. app.js

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
const config = require('./utils/config')
const logger = require('./utils/logger')
const express = require('express')
const app = express()
const mongoose = require('mongoose')
var morgan = require('morgan')

logger.info('connecting to')

mongoose.connect(config.MONGODB_URI)
    .then(() => {
        logger.info('connected to MongoDB')
    })
    .catch((error) => {
        logger.error('error connecting to MongoDB:', error.message)
    })


morgan.token('data', (req, res) => JSON.stringify(req.body))
app.use(morgan(':method :url :response-time :data'))

module.exports = app

Step 7: Connecting to Database

The connection to database is typically done in App.js.

But before you begin the connection, it’s good to set the config variables.

npm install dotenv
Create .env file in project root
Add the following properties to to .env: MONGODB_URI=’' PORT=3003
Add .env to .gitignore.
Create new file utils/config.js

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
//config.js
require('dotenv').config()

const PORT = process.env.PORT || 3003

const MONGODB_URI = process.env.NODE_ENV === 'test'
    ? process.env.TEST_MONGODB_URI
    : process.env.MONGODB_URI

module.exports = {
    MONGODB_URI,
    PORT
}

If process is underlined by eslint, go to eslintrc and change env from 'browser': true to 'node': true. 6.

The following lines in App.js are in charge of connection:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
const config = require('./utils/config')
const logger = require('./utils/logger')
const mongoose = require('mongoose')

logger.info('connecting to')

mongoose.connect(config.MONGODB_URI)
  .then(() => {
    logger.info('connected to MongoDB')
  })
  .catch((error) => {
    logger.error('error connecting to MongoDB:', error.message)
  })

Step 8: Test that the connection works

npm run dev

If it’s connected, it should display connected to MongoDB on console.

Step 9: Populating the database with some initial sample data

Under utils, create a document sampleData.js containing your sample data and export them.

Store your data as a list of collections like so:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
const tradeData = [
{
  email: "user1@domain.com",
  password: "user1",
  posts: []
},
{
  email: "user2@domain.com",
  password: "user2",
  posts: []
},
]

Import into app.js
const tradesData = require('./utils/sampleData').tradesData
Import models into app.js
const Trade = require('./models/trade.js')
const Stream = require('./models/stream.js')
Drop collections in case they already exist:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
mongoose.connection.dropCollection('trades', (err) => {
    if (err) {
        if (err.code === 26)
            console.log("-- trades collection does not exist")
        else throw err;
    } else {
        console.log('-- trades collection dropped')
    }
})

mongoose.connection.dropCollection('streams', (err) => {
    if (err) {
        if (err.code === 26)
            console.log("-- streams collection does not exist")
        else throw err;
    } else {
        console.log('-- streams collection dropped')
    }
})

To add them to mongo database, Within app.js:

1
2
3
4
5
6
7
8
9
Trade.create(tradesData, (err, trades) => {
    if (err) throw err
    console.log(trades + '\n-- trades inserted successfully')
})

Stream.create(streamsData, (err, streams) => {
    if (err) throw err
    console.log(streams + '\n-- streams inserted successfully')
})

However, in reality, there was a complication in terms of ID management. The gist of it is that, my Streams collection needs to reference the Trade _id field, which are not created yet.

My (inelegant) workaround:

Bulk create trades data like above by running npm run dev
Stop app - to prevent constant writing into DB.
Copy _id manually into streams sample data
Comment out create trades lines; Run bulk create streams.

It works.The full app.js looks like this - comment out as per necessary. These are just one off executions for development purposes, so it’s fine.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
const config = require('./utils/config')
const express = require('express')
const tradesData = require('./utils/sampleData').tradesData
const streamsData = require('./utils/sampleData').streamsData
const Trade = require('./models/trade.js')
const Stream = require('./models/stream.js')
const app = express()
const logger = require('./utils/logger')
const mongoose = require('mongoose')
var morgan = require('morgan')

console.log(tradesData)
logger.info('connecting to')

mongoose.connect(config.MONGODB_URI)
    .then(() => {
        logger.info('connected to MongoDB')
    })
    .catch((error) => {
        logger.error('error connecting to MongoDB:', error.message)
    })

morgan.token('data', (req, res) => JSON.stringify(req.body))
app.use(morgan(':method :url :response-time :data'))

//**********************************************************
//*                     Clearing collection
//**********************************************************
mongoose.connection.dropCollection('trades', (err) => {
    if (err) {
        if (err.code === 26)
            console.log('-- trades collection does not exist')
        else throw err
    } else {
        console.log('-- trades collection dropped')
    }
})

mongoose.connection.dropCollection('streams', (err) => {
    if (err) {
        if (err.code === 26)
            console.log('-- streams collection does not exist')
        else throw err
    } else {
        console.log('-- streams collection dropped')
    }
})

//**********************************************************
//*                     Populating trades
//**********************************************************
Stream.create(streamsData, (err, streams) => {
    if (err) throw err
    console.log(streams + '\n--streams inserted successfully')
})
Trade.create(tradesData, (err, trades) => {
    if (err) throw err
    console.log(trades + '\n-- trades inserted successfully')
})

module.exports = app

That’s it for this part, it’s getting bit long. Onwards to Part B, where I discuss what else I do after that!

If you’re confused about placement of this line of code, use it like how you would middleware: i.e. before the routes. ↩︎
