Steps for Implementing Redux Into a Project

Step 1: Install Redux & react-redux, and redux-thunk

npm install redux
npm install react-redux npm install redux-thunk

Step 2: Think about what states you want your store to have

For my case, it was:

1
2
3
4
5
{
    streams: [{},{}]
	trades: [{},{}]
	globalNominalDenom: 'SGD'
}

Step 3: Taking stock of ways Database data and store data is interacted with

There are three broad functions you’re trying to achieve, what I call, the right hand, left hand, and the reducers. Right hand is in charge of getting state from database. Left hand is in charge of ‘pushing’ state to store via dispatch. With the help of redux-thunk, you essentially combine these two functions together into the definition of action creators.

So, given an empty project, first outline all the ways the data will be interacted with. This will correspond to the available routes in your project.

For streams, for instance, I have

GET
POST
PUT (:/id)
PUT(:/id/trade)
DELETE

For trades, I have:

GET
POST
PUT
DELETE

Laying the groundwork

Step 4: Creating store.js and applying thunk Middleware

We’ll first by creating the style in Invocation Driven Development fashion. Creating the store early helps us test the rest of the code during development.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
import { createStore, combineReducers, applyMiddleware  } from 'redux'
import thunk from 'redux-thunk'
import { composeWithDevTools } from 'redux-devtools-extension'

import anecdoteReducer from '../reducers/anecdoteReducer'
import notificationReducer from '../reducers/notificationReducer'
import filterReducer from '../reducers/filterReducer'

const reducer = combineReducers({
    notification: notificationReducer,
    anecdotes: anecdoteReducer,
    filter: filterReducer
  })

const store = createStore(
    reducer,
    composeWithDevTools(
      applyMiddleware(thunk)
    )
)

export default store

Step 5: Make changes to index.js to supply store.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
import React from 'react'
import ReactDOM from 'react-dom'
import { Provider } from 'react-redux'
import store from './utils/store'
import App from './App'


ReactDOM.render(
  <Provider store={store}>
    <App />
  </Provider>,
  document.getElementById('root')
)

Step 6: Make changes to App.js to initialize state of store

Don’t worry about dispatch(initializeAnecdotes()) not working for now, we’ll implement the action creator initializeAnecdotes shortly.

1
2
3
4
5
6
7
8
import React, {useEffect} from 'react'
import { initializeAnecdotes } from './reducers/anecdoteReducer'
import { useDispatch } from 'react-redux'
const App = () => {
  const dispatch = useDispatch()
  useEffect(() => {
    dispatch(initializeAnecdotes())
  }, [dispatch])

Step 7: Main steps: Code the Reducers

But before we begin, we need to ask ourselves:

Higher level logic

What kind of actions would I need? Think about the labels you want to set their type to.

Streams

GET (api/streams) : 'INIT_STREAMS'
POST (api/streams) : 'NEW_STREAM'
PUT (api/streams) : 'UPDATE_STREAM'
PUT (api/streams/:id/trade): 'UPDATE_TRADE_IN_STREAM'
DELETE (api/streams): 'DELETE_STREAM'

Thus, streamReducer will contain 5 cases.

Trades:

GET (api/trades) : 'INIT_TRADES'
POST (api/trades) : 'NEW_TRADE'
PUT (api/trades) : 'UPDATE_TRADE'
DELETE (api/trades): 'DELETE_TRADES'

Step 8: Implementation (one reducer at a time)

a) In frontend of app, create a reducers folder.

b) Create two files: streamReducer.js, tradeReducer.js

c) Implement streamReducer and dependencies (action creators and services) below:

d) Code the outline for streamReducer

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
const streamReducer = (state = [], action) => {
    switch(action.type) {
        case 'INIT_STREAMS': {

        }

        case 'NEW_STREAM': {

        }

        case 'UPDATE_STREAM': {

        }

        case 'UPDATE_TRADE_IN_STREAM': {

        }

        case 'DELETE_STREAM': {

        }
    default:
        return state
    }
}

e) Code reducer dependencies ’top-down’ from dispatch() call

Then, think about the cases that you’d want to dispatch() to store, and code the corresponding action creators, using what I call ‘Invocation Driven Development’ (IDD)

1) First point of invocation (within App.js)

dispatch call:

1
dispatch(initializeStreams())

Okay, you need an action creator.

2) action creator (within streamsReducer.js):

1
2
3
4
5
6
7
8
9
const initializeStreams = () => {
    return async dispatch => {
        const streams = await streamService.getAll()
        dispatch({
            type: 'INIT_STREAMS',
            data: streams
        })
    }
}

You’ll realize that you’ll code your way into the dependency, streamService.

3) streamService.js

Create a folder called services. Create a file called ‘streams.js’ streams.js:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
import axios from 'axios'

const baseUrl = 'http://localhost:3003/api/streams'

const getAll = async () => {
  const response = await axios.get(baseUrl)
  return response.data
}

export default { getAll }

Within streamReducer.js, import streamService import streamService from '../services/streams'

f) Do the same for rest of the actions: think about how action is called, define action creator, code the service.

This is tricky, because you’re updating 4 documents at once - place it’s invoked (component), Action Creator(reducer), Axios Service(service/streams.js), Reducer(streamReducer.js) - in an iterative fashion.

Example: POST
How it’s called:

1
2
3
//within NewStream component event handler
const content = event.target.stream.value
dispatch(newStream(content))

Defining Action Creator:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
//within streamReducer.js
const newStream = content => {
    return async dispatch => {
        const newStream = await streamService.createNew(content)
        dispatch({
            type: 'NEW_STREAM',
            data: newStream
        })
    }
}

Coding the service:

1
2
3
4
5
6
//within services/stream.js

const createNew = async (content) => {
    const response = await axios.post(baseURL, content)
    return response.data
}

Then, fill in more for your reducer:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
const streamReducer = (state = [], action) => {
    switch(action.type) {
        case 'INIT_STREAMS': {
            return action.data
        }

        case 'NEW_STREAM': {
            const newStreams = state.concat(action.data)
            return newStreams
...
}

One more example: UPDATE:
How it’s called:

1
dispatch(updateStream(id, content))

Defining Action Creator:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
const updateStream = id, content => {
    return async dispatch => {
        const newStream = await streamService.updateStream(id, content)
        dispatch({
            type: 'UPDATE_STREAM',
            data: {
                id,
                content: newStream
            }
        })
    }
}

Coding the service:

1
2
3
4
const updateStream = async (id, newStream) => {
    const response = await axios.put(`${baseURL}/${id}`, newStream)
    return response.data
}

Filling in the reducer

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
const streamReducer = (state = [], action) => {
    switch(action.type) {
...
        case 'UPDATE_STREAM': {
            const id = action.data.id
            const newStream = action.data.content
            return state.map(stream => stream.id !== id ? stream : newStream)
        }
...
}

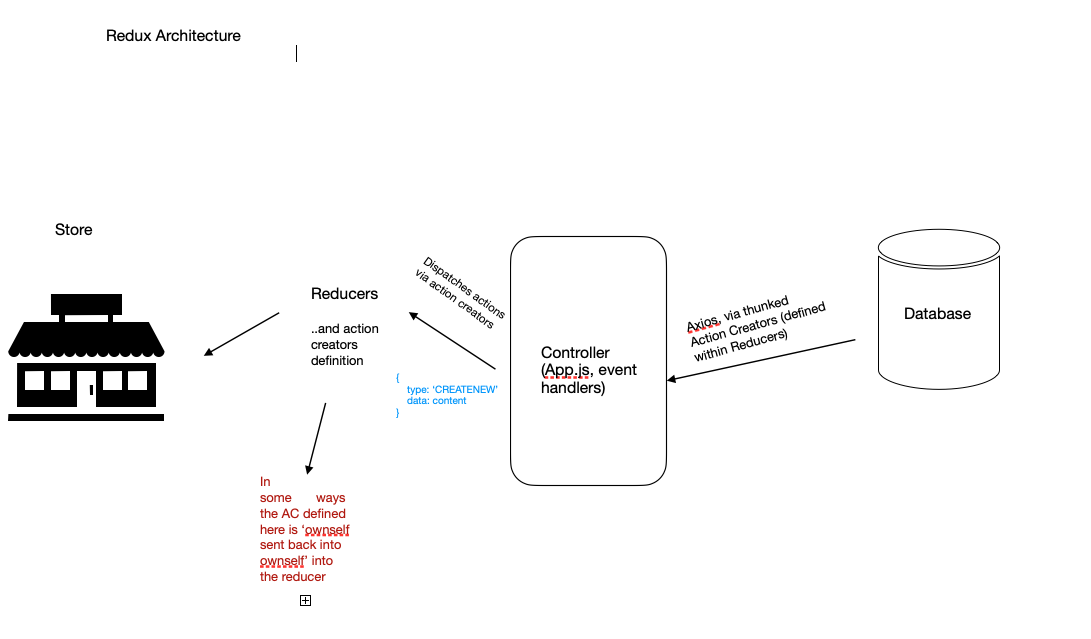

Step 9: Things to note about this architecture:

The right hand, axios, is entirely embedded into the Action Creators, and called via services.
The left hand, store alteration, is also embedded into Action creators.
Each of the Action handlers within Reducer has its own unique logic. INIT uses getAll and returns state. POST uses createNEW service, which itself uses axios.post. UPDATE_STREAM creates a new stream object, and maps over state to ‘replace’ the objected associated with the targetted ID.

And importantly:

The function of reducers is to alter left hand. Right hand data is altered with one line within action creators solely, before LH data is altered. This is redux thunk logic.
